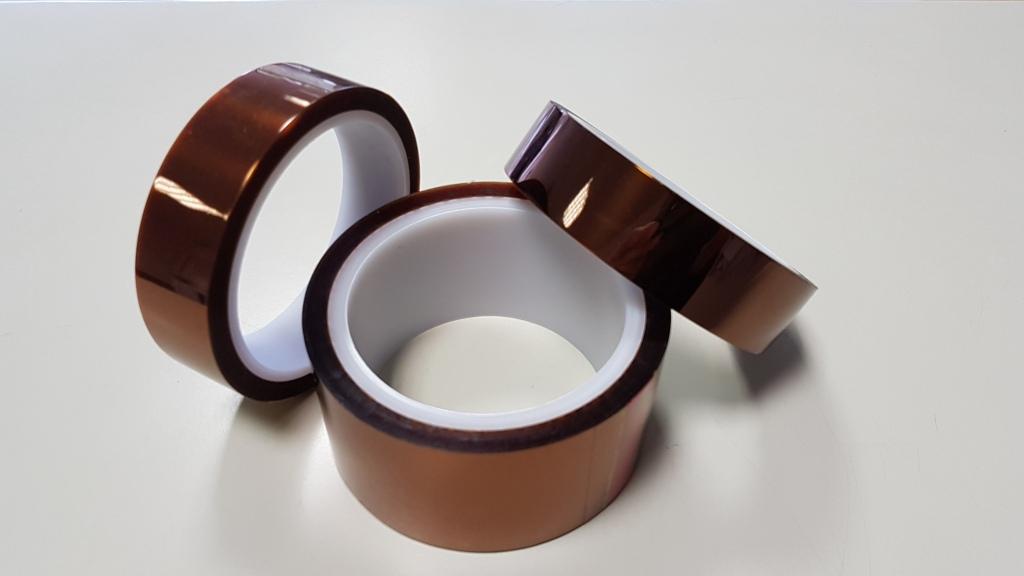

Polyimide Tape

Polyimide tape is made of 1 mil (25 microns) polyimide film coated with silicone adhesive. It is UL recognized, 200°C heat resistant, flame retardant, together with good tensil strength, thin gauge and excellent electrical properties, especially suitable for the H-class high temperature application of flexible circuit board, transformer, coil and capacitors etc.

Properties:

  • Catalog Number: CMY11000 and CMY11001
  • PI Film thickness: 25 microns
  • Width – Lenght: 19 – 25 – 50 mm x 33 mt
  • Adhesive Type: Silicon Adhesive – 35 microns
  • Total Thickness: 0,060 mm (60 microns)
  • UL recognition: E117836
  • Temperature rating: 200°C
  • Flame retardant: UL -510 Yes
  • Film Thickness: 0,025 mm
  • Dielectric Breakdown: 7.500 Volts
  • Insulation Resistance: 1 × 106 megaohm
  • Tensile Strength: 13 kg/in.
  • Elongation: 55%
  • Electrolytic Corrosion: Factor 1.0
  • Adhesion to Steel: 650±150 g/in.
